Rite-Lite
Series 3
back

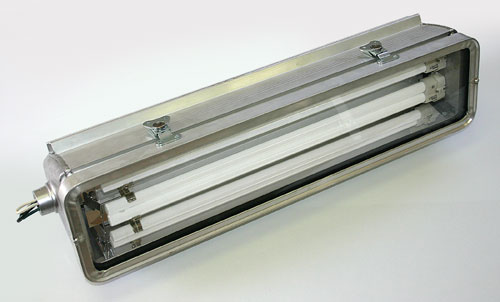

RL 24 3 PLL50
Series 3 Applications:
  1. Oilwell Drilling Rigs
  2. Refineries and other Petro-Chemical Installations
  3. POrtable Lighting
  4. Agriculture
  5. Forestry
  6. Mining

Certifications:
  1. Class I, Division 2
  2. Groups A,B,C, D
  3. Enclosure type 4
  4. Temperature T3A
    CSA Approved

Key Features:
  1. Robust Construction
  2. Sleek, narrow design
  3. Flexible Mounting Options
  4. Easy lamp replacement
  5. Suitable for Extreme environments

TECHNICAL SPECIFICATIONS
Supply 120-277V, 50/60hz
Current Draw (Watts) 112
Lamp Life 20,000 hrs
Fixture Lumens 8,600
Lamps 2 x PLL50
Minimum Start Temperature
 -29° C
Entries 2 x 1/2"
Housing Material Aluminum
Lens Material Polycarbonate
Shipping Weight 14 lbs
Carton Dimensions 7.75 x 6.375 x 33”

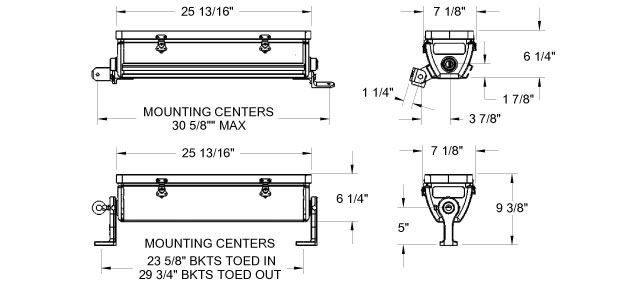

Line Drawin

Download Acrobat file Download PDF of Technical Data Sheet.
